Electrolytic Capacitor

RADIAL TYPE

Size: Φ4 – Φ22
Voltage: 6.3V – 500V
Capacitance: 0.1μF – 22,000μF
ESR: as low as 10mΩ
Life: up to 20,000 hours (105C)
or 5,000 hours (130C)

RADIAL POLYMER TYPE

Size: Φ4 – Φ10
Voltage: 2.5V – 200V
Capacitance: 4.7μF – 3,300μF
ESR: as low as 5mΩ
Life: up to 10,000 hours (105C)
2,000 hours (85C)
or 1,000 hours (150C)

SNAP-IN TYPE

Size: Φ22 – Φ40
Voltage: 10V – 550V
Capacitance: 39μF – 56,000μF
Life: up to 10,000 hours (105C)

SMD TYPE

Size: Φ4 – Φ18
Voltage: 6.3V – 450V
Capacitance: 2.2μF – 1,000μF
ESR: as low as 10mΩ
Life: up to 20,000 hours (105C)
or 5,000 hours (130C)

SMD POLYMER TYPE

Size: Φ4 – Φ22
Voltage: 6.3V – 500V
Capacitance: 0.1μF – 22,000μF
ESR: as low as 10mΩ
Life: up to 20,000 hours (105C)
or 5,000 hours (130C)

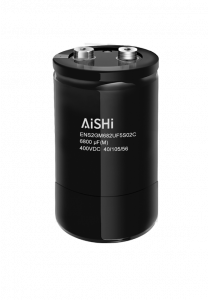

SCREW TYPE

Size: Φ35 – Φ100
Voltage: 10V – 600V
Capacitance: 1,000μF – 680,000μF
Life: up to 20,000 hours (85C)
or 5,000 hours (105C)
